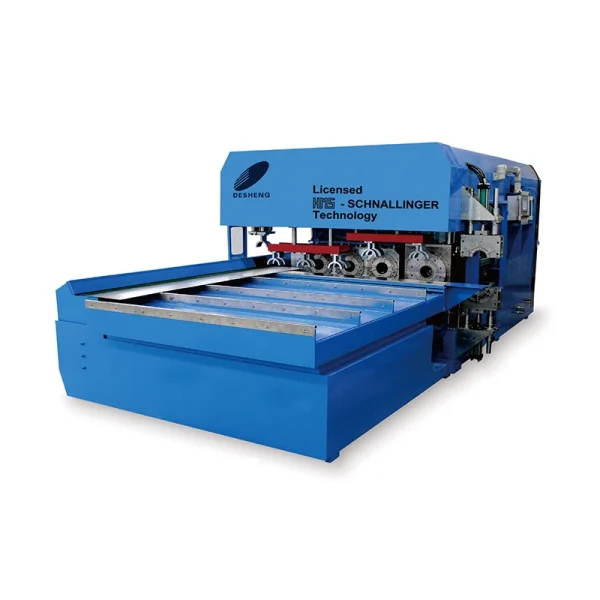

DS160PP-NII Automatic Belling Machine
- Handles PP/PE pipes with 40–160mm diameter and 0.3–3m length.
- Uses blow-type forming with contact heating and water cooling for precise shaping.
- Produces up to two pipes per cycle, ensuring high-speed, efficient output.
Main Technical Specifications
| Model | DS160PP-NII |
| Diameter | φ40-φ160mm |
| Pipe Length | 0.3m-3m |
| ext-pressure | 2.5Mpa |
| Total power(KW) | 29 |
| Production speed | 20s-100s 40mm and 50mm are two pipes per cycle,63mm-160mm are one pipe per cycle |
| heating mode | Contact heating by Aluminum block, Stainless steel heating tube, with internal heating |

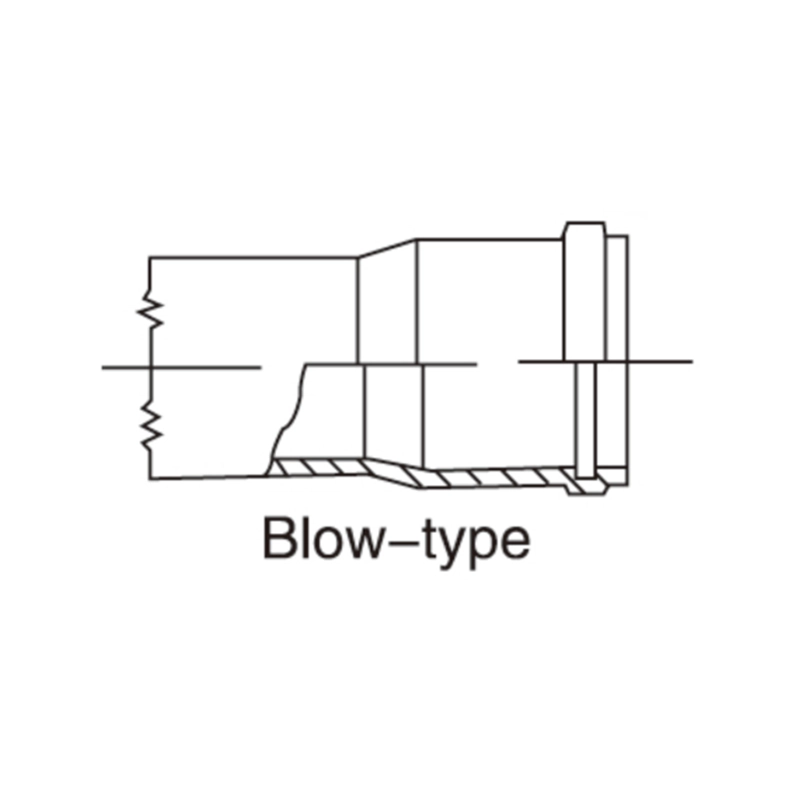

| Forming mode | blow type |
| Cooling mode | water cooled |
