- Handles 12 pipes per cycle, diameter range Φ16–Φ32mm, length 3m–6m.
- Operates with infrared heating and water or air cooling options for flexibility.
- Delivers 18–25 second cycles with 15KW power for efficient high-volume production.

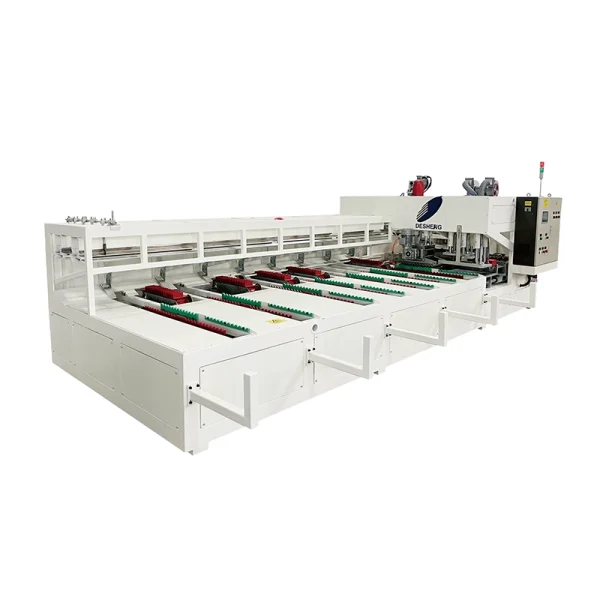

DS32-12 Multiple Pipe Belling Machine
Main Technical Specifications
| Model | DS40-4 | DS40-5 | DS40-6 | DS32-8 | DS32-12 |
| Diameter | φ16-φ40mm | φ16-φ40mm | φ16-φ40mm | φ16-φ32mm | φ16-φ32mm |
| Quantity | Four pipes per cycle | Five pipes per cycle | Six pipes per cycle | Eight pipes per cycle | Twelve pipes per cycle |
| Pipe Length | 3m-6m | 3m-6m | 3m-6m | 3m-6m | 3m-6m |
| Total power(KW) | 15 | 15 | 15 | 15 | 15 |
| Production speed | 18s-25s | 18s-25s | 18s-25s | 18s-25s | 18s-25s |
| Heating mode | Contact heating by Aluminum block | Infrared heating | |||
| Cooling mode | Water-cooled or Air-cooled | ||||
