Auto Rieber Ring-sewer Pipe

Material

Seal Performance

Design pressure of the sealing ring 1.0MPa
Code 5885 can be used for drinking water, drainage and sewage sealing/code 5886 can be used for cold &hot drinking water.
Ozone resistance and temperature resistance -40C~+150°C(within 4 hours +280°C)
Low insertion force and can bear medium and low pressure.
Oil and chemical resistance.

Plastic medium and low pressure pipe(code 5885)/Plastic low pressure pipe(code 5886), Automatic ring fit when pipe make belling.
The sealing ring has been placed in the Rieber ring-type socket pipe during the manufacturing and molding process of the plastic pipe, and there is no matching error between the sealing ring and the Rieber ring-type socket pipe.
The steel wire reinforced structure of the sealing ring makes it have high radial stiffness and realize high stability and reliability.
It can effectively eliminate the risk of extrusion of sealing ring.
The integrated structure of the sealing ring eliminates the possibility of soil or other foreign particles entering between the sealing ring and the inner wall of the pipeline.
The sealing ring does not have the problem of on-site installation, which avoids the possible mistakes of many on-site manual installations of the sealing ring.

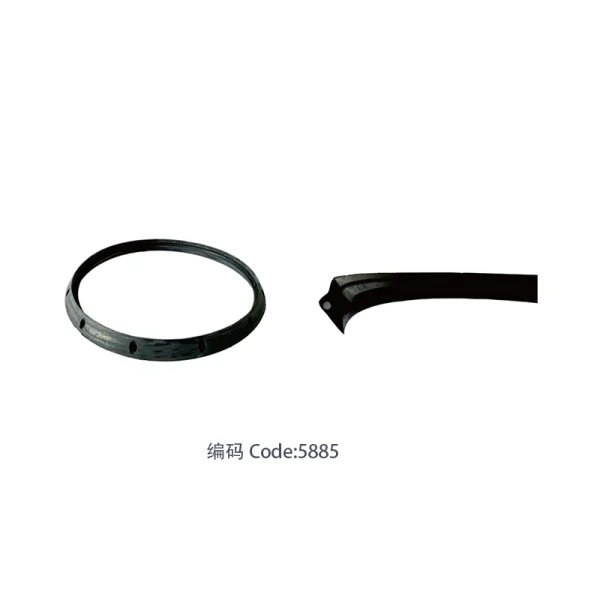

Code 5885: Plastic medium and low pressure pipe(automatic ring fitting), pipe dia. range Φ110-400mm.

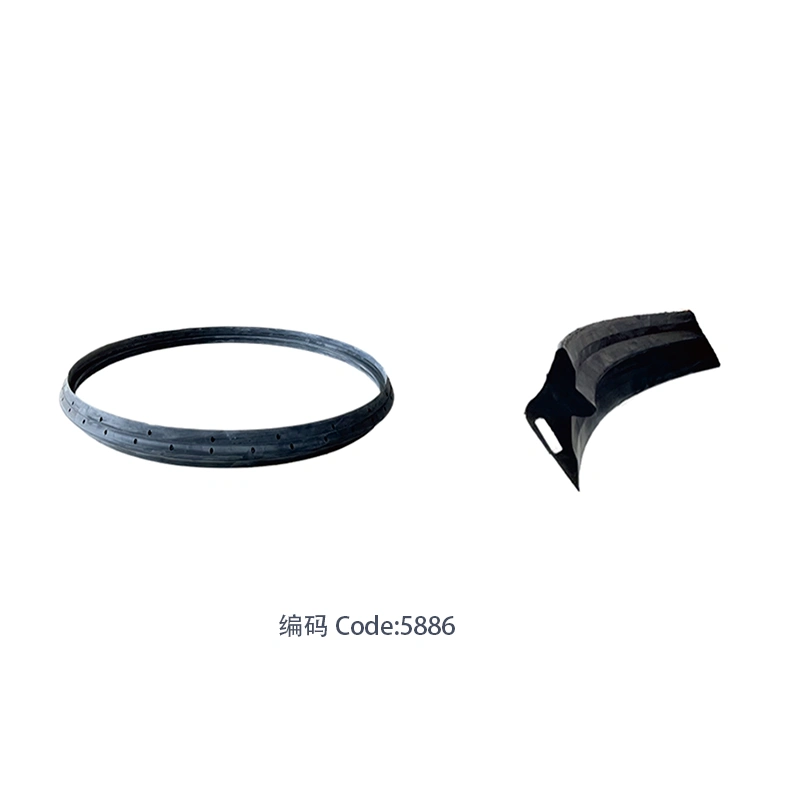

Code 5886: Plastic medium and low pressure pipe(automatic ring fitting), pipe dia. range Φ500-800mm.
